Instructions to Construct a Basic Round Observed Guide for Straighter Cuts:

At the point when I moved a couple of years prior, I headed out in different directions with my kid table saw. I intended to supplant it once I subsided into my new house, yet when the opportunity arrived to assemble a room divider/shelf unit, I chose to fabricate a few my own shoddy round observed aides all things being equal. The aides are reduced and store without any problem. More significant, they can likewise help you work all the more precisely and securely in the shop.

I made two aides — one for tearing long bits of the medium-thickness fiberboard that I was utilizing on the task, in addition to a more limited one for crosscutting sheets. I didn’t spend anything for materials, utilizing compressed wood and sheets that were gathering dust in my carport.

Here’s the manner by which to make the long guide:

1. You’ll require a straight 8-ft.- long 1 x 4 and a 8-ft.- long piece of compressed wood at any rate 12 in. wide. Position the 1 x 4 around 1/2 in. away from one edge of the compressed wood, ensuring the edges of the 1 x 4 and the pressed wood are equal. Secure the compressed wood to the 1 x 4 utilizing wood paste and 3/4-in. box nails, driven each 8 to 10 in. Drive through the pressed wood first- — you for the most part need to nail through the more slender piece into the thicker piece get more ideas from sawoffers.

2. Rest the wide side of the saw’s shoe against the 1 x 4. Cut the abundance compressed wood along 8 ft. of the 1 x 4’s length, managing the bigger side of the pressed wood.

That is it! Presently, when you need to cut a long board or sheet, simply adjust your slice imprints to the edge of the guide, brace the guide on each end, and cut. The cutting edge will travel directly along the compressed wood edge, with the shoe riding against the 1 x 4. It’s brisk, safe and particularly valuable when you need to pare a sheet of pressed wood down or to tear a long straight edge on a wide bit of timber to set it up for additional tearing on a table saw.

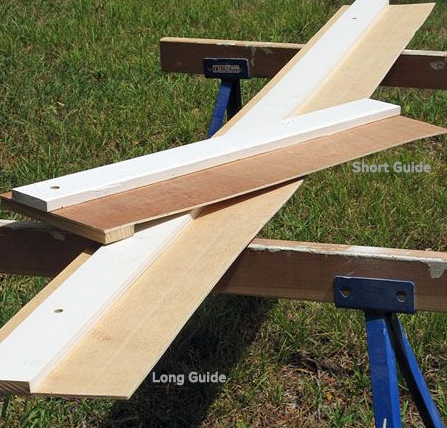

I made a short guide a similar way, utilizing 3-ft.- long pieces. The solitary contrast is that I put a 1 x 2 stop on the base, opposite to the 1 x 4 guide, which naturally squares the guide across the piece being cut.

The lone thing I would change is the pressed wood thickness- — for these, I utilized a 3/8-in. scrap I had close by. Next time, I’ll utilize 1/2-in. compressed wood to make a more unbending aide. At the point when I’m not utilizing them, I balance the two aides on the divider.
